Description
1,Product Introduction

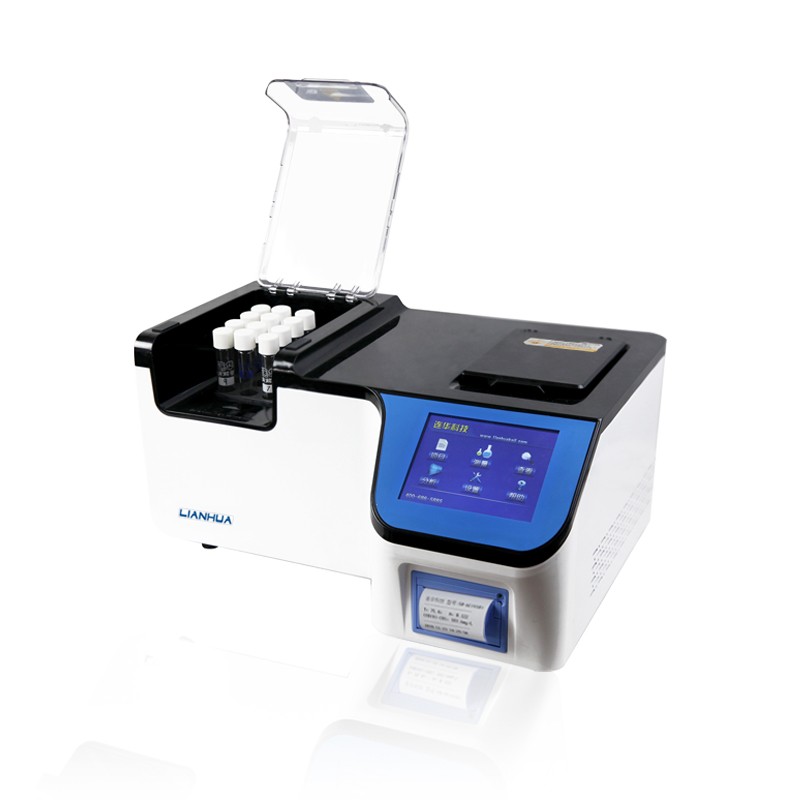

5B-6C(V10) is a Four-parameter Water Quality Analyzer. The instrument is simple to use,high accuracy and full-featured.It is a high-grade equipment that our company tailored to pollution source emission enterprises.
2,Features
1.Can determination COD,Ammonia Nitrogen,Total phosphorus and Turbidity.
2.Set colorimetric system,Digestive system and timing system in one.
3.High-definition color LCD,humanized operation and simple to use
4.Intelligent data analysis,data analysis at a glance
5.Can change font size,data display more clear,and parameters more detailed.
6.Imported heat resistant protective cover,ensure the safety and reliability of the experiment
7.Light source life 100 thousand hours
8.Above digestion hole,has aviation insulation,layer protection, can effectively prevent scald.
9.Support two ways of colorimetric cuvette and colorimetric tube
10.The color LCD screen display and concentration direct reading
3,Technical Parameters
|
Instrument name |
Multi-parameter Water Quality Analyzer |
|||
|
Instrument model |
5B-6C(V10) |
|||
|
Testing item |
COD |
Ammonia Nitrogen |
Total phosphorus |
Turbidity |
|
Testing scope |
2～10000mg/L(subsection) |
0.02～100mg/L(subsection) |
0.01～12mg/L(subsection) |
1～300NTU |
|
Testing accuracy |
COD<50mg/L,≤±8％ COD>50mg/L,≤± 5％ |
≤±5％ |
≤±5％ |
≤±10％ |
|
Min test line |
0.1mg/L |
0.01mg/L |
0.001mg/L |
0.1NTU |
|
Test time |
20min |
10～15min |
35～50min |
1min |
|
Batch process |
12pcs |
12pcs |
12pcs |
Not limited to |
|
Repeatability |
≤±2％ |
≤±2％ |
≤±2％ |
≤±2％ |
|
Light source life |
100 thousand hours |
|||
|
Optical stability |
≤0.005A/20min |
|||
|
Anti chlorine interference |
[Cl-]﹤1000mg/L No effect [Cl-]﹤4000mg/L(Optional) |
─ |
─ |
─ |
|
Digestion temperature |
165℃±0.5℃ |
─ |
120℃±0.5℃ |
─ |
|
Digestion time |
10min |
─ |
30min |
─ |
|
Colorimetric method |
Tube/Cuvette |
Tube/Cuvette |
Tube/Cuvette |
Cuvette |
|
Data storage |
16 thousand |
|||
|
Curve number |
121pcs |
|||
|
Data transmission |
USB/Infrared(Optional) |
|||
|
Display screen |
High definition color LCD |
|||
|
Rated voltage |
AC220V |
|||
|
Timing switch |
3pcs |
3pcs |
3pcs |
─ |
