Description
1, Production introduction

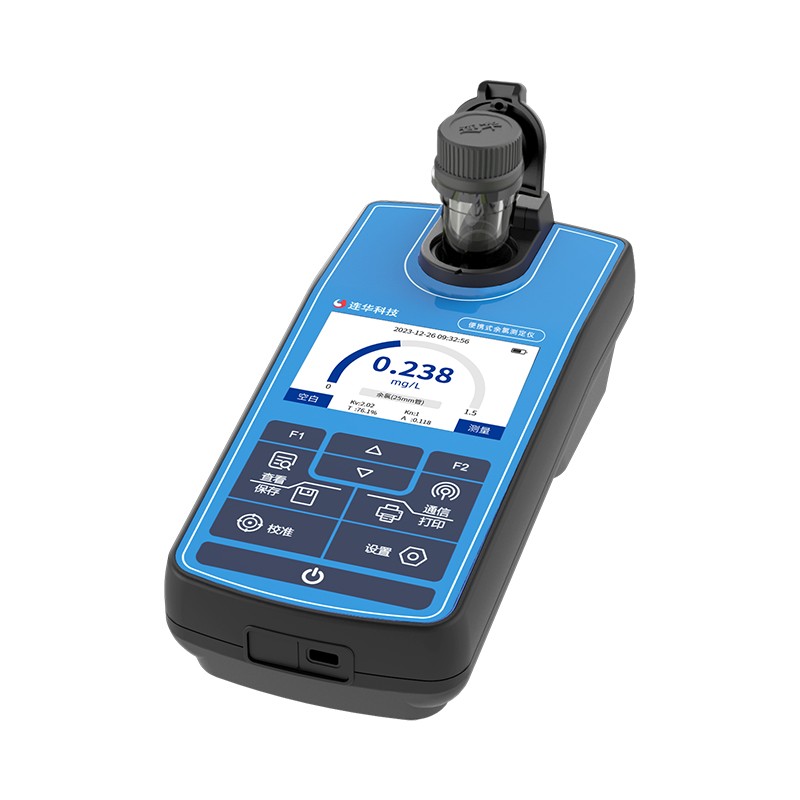

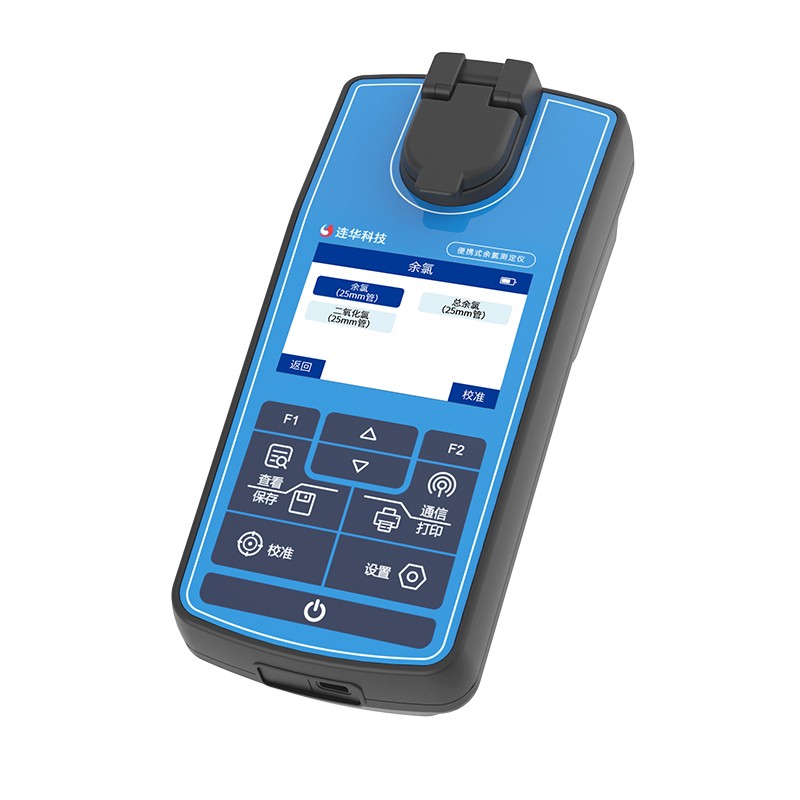

Portable instrument for detecting residual chlorine, total residual chlorine and chlorine dioxide in water.
2, Features
1) High precision: the standard curve has been set, and the measurement results are accurate and stable;
2) Instrument calibration: Calibration function, which can calculate and store the curve according to the standard sample, no need to manually make the curve, and can change the curve parameters;
3) Convenient detection: equipped with a portable case and professional consumable reagents, suitable for various environments such as outdoors and indoors;
4) Data storage: store 5000 pieces of data, and support and upload data to the computer through USB;
5) Data printing: It can be connected to a portable printer (optional) to print current data and historical data;
6) Intelligent power saving: power saving design that automatically shuts down after 10 minutes of no operation reminder.
|
Name |
Portable chlorine multi-parameter tester |
||
|
Model |
LH-P3CLO |
||
|
Index |
Residual Chlorine |
Total residual chlorine |
Chlorine Dioxide |
|
Measuring range |
（0~15）mg/L |
（0~15）mg/L |
（0~5）mg/L |
|
Optical stability |
＜0.005A/20min |
Accuracy |
ΔV≤±10% |
|
Repeatability |
≤±5% |
Number of curves |
5 |
|
Storing data |
5000 |
Measurement time |
1 minute |
|
physical parameters |
|||
|
Display screen |
LED |
Colorimetric method |
25mm tube |
|
Printer |
Portable thermal printer (optional) |
Data transmission |
USB |
|
Instrument size |
（224×108×78）mm |
Instrument weight |
0.55Kg |
|
Environment and working parameters |
|||
|
Ambient temperature |
（5~40）℃ |
Environment humidity |
≤85%RH |
|
Rated voltage |
Battery 4AA/LR6 and 8.4V power adapter |
Power consumption |
0.3W |
