Description
1，Production introduction

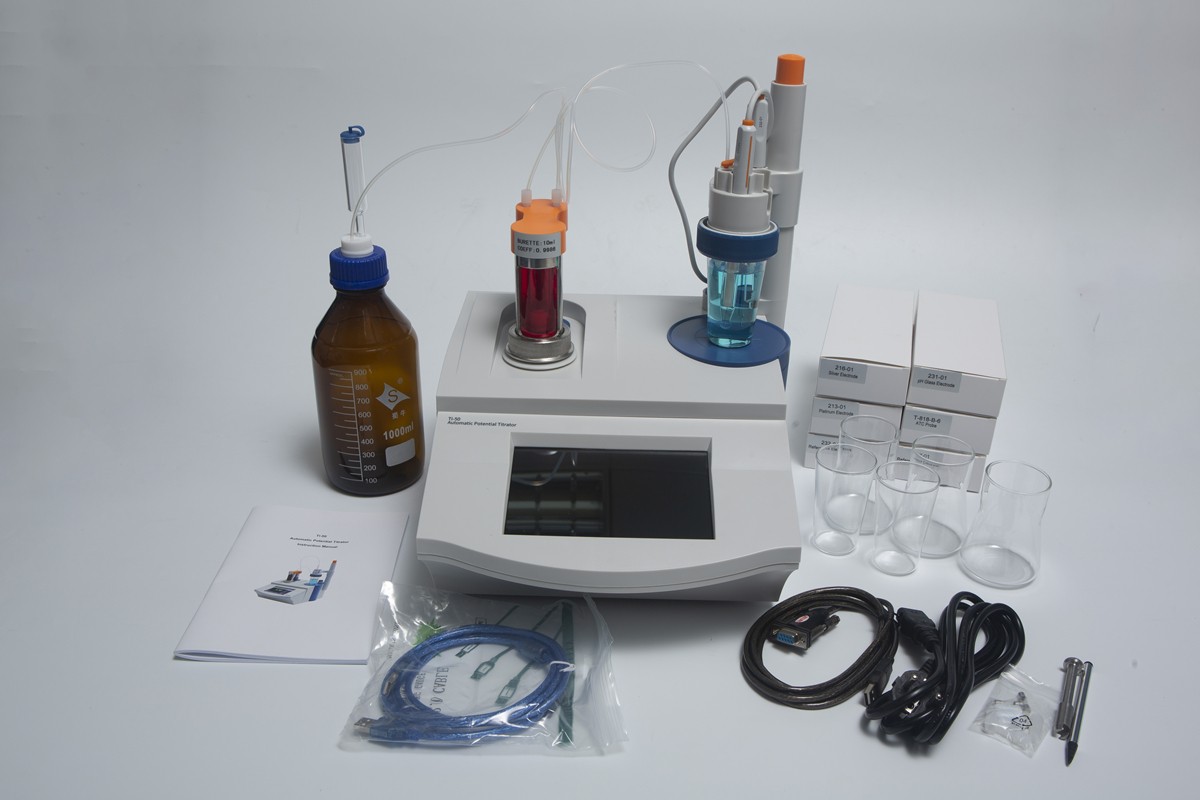

Automatic Potential Titrator / Automatic Titrator
2, Features
1, 7” colorful touchscreen and smart guide system.
2, Titration methods, curves and results are displayed in detail.
3, 1 extra burette driver can be installed (optional).
4, Replaceable burette with high-accuracy (10 ml or 20 ml selectable).
5, Intelligent operation system provides features including user management, method management, electrode management, titrant management, data management, etc.
6, Support the following titration modes: DET (dynamic equivalence point titration), MET (monotone equivalence point titration), SET (Preset Endpoint Titration) and MAT (manual titration).
7, pH calibration and measurement are supported.
8, Up to 100 user-defined methods and 10 user-defined shortcuts.
9, Auto calculation with pre-defined formula.
10, Store up to 200 titration data sets (GLP-compliant).
11, Data analysis feature helps user review, compare and recalculate results.
12, Data can be easily transferred to printer via RS-232 communication interface.
13, Titrator can be controlled by computer via USB or RS-232 communication interface.
14, Automatic sampler is supported.
|
Model |
LH-50 |
|
|
Burette |
Repeatability |
≤0.2% |
|
Accuracy |
10ml Burette: ±0.020ml; 20ml Burette: ±0.030ml |
|
|
Mechanical Unit |
Resolution |
1/30000 |
|
Measuring Unit |
Range |
(-2000.00~2000.00) mV, (0.000~20.000)pH |
|
Resolutions |
0.01mV, 0.001pH |
|
|
Accuracy |
pH: ±0.002pH mV: ±0.03% or ±0.2mV |
|
|
Fluctuation |
±0.3mV/3h |
|
|
Temp. Compensation |
Range |
(-5.0~105.0) ℃ |
|
Resolutions |
0.1 ℃ |
|
|
Accuracy |
±0.2 ℃ |
|
|
General |
Power Supply |
AC Adapter, 100-240V AC input, DC24V output |
|
Dimensions |
340×400×400 mm |
|
|
Weight |
10 kg |
|
|
Dimensions (Carton) |
540×490×480 mm |
|
|
Weight (Gross) |
12 kg |
|
