Description
1, Production introduction

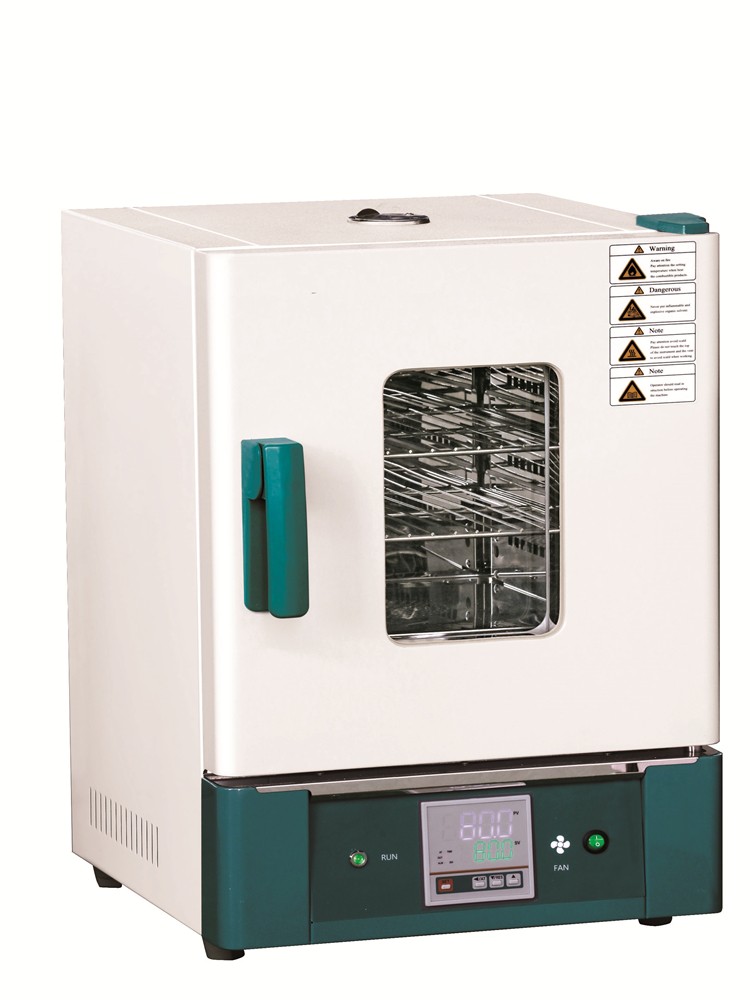

Forced Air Drying Oven
Used for drying, baking, wax, heat treatment
2, Features
1. Horizontal air circularly by double Air ducts, high efficiency and high Uniformity.
2. PID controller, with over-temperature protection function.
3. With fan switch,LED digital display,high temperature blast motor.
4.New anti-hot handle
LH-BE series have the following characteristics other than the above functions
1. LCD temperature controller.
2. 4 grades speed fan, adjustable for different requirements.
3. Over-temperature protection system.
4. High precision digital independent temperature limiter.
5.304:SUS304 Stainless Steel Body.
3, Specification
| Model | LH-30B | LH-45B | LH-65B | LH-85B | LH-125B | LH-230B | LH-625B | ||
| LHL-30BE | LHL-45BE | LHL-65BE | LHL-85BE | LHL-125BE | LHL-230BE | LHL-625BE | |||
| LHL-30BE(304) | LHL-45BE(304) | LHL-65BE(304) | LHL-85BE(304) | LHL-125BE(304) | |||||
| Cycle Mode | Forced convection | ||||||||
| Function | Temp. Range | RT+10-300℃ | |||||||
| Temp. Resolution | 0.1℃ | ||||||||
| Ratio | |||||||||
| Temp. Motion | ±1℃ | ||||||||
| Temp. Uniformity | ±2.5% | ||||||||
| Structure | Inner Chamber | Mirror Stainless Steel | |||||||
| Outer Shell | Cold rolling steel electrostatic spraying exterior | ||||||||
| Insulation layer | High quality rock wool board(with CE) | ||||||||
| Heater | Stainless steel heater | ||||||||
| Power rating | 0.8kW | 1.2kW | 1.6kW | 2.0kW | 2.3kW | 3.0kW | 5.0kW | ||
| Exhaust hole | φ35mmtop(with function of test hole) | Rear exhaust | Top double exhaust | ||||||
| Controller | Temp. control mode | Two temperature section PID intelligent | |||||||
| Temp. setting mode | Touch button setting | ||||||||
| Temp. display mode | B model: Measuring temperature: display on the four digital tubes | ||||||||
| upper row, setting temperature: display on the lower row | |||||||||
| BE model: Measuring temperature display on upper LCD screen， | |||||||||
| setting temperature display on the lower row | |||||||||
| Timer | 0-9999min(with timing wait function) | ||||||||
| Operation function | Fixed temperature operation, timing function, auto stop. | ||||||||
| Sensor | pt100 | ||||||||
| Specification | Volume | 30L | 45L | 65L | 85L | 125L | 230L | 625L | |
| Max Shelf number | 5 | 6 | 8 | 8 | 11 | 17 | 11 | ||
| Load per rack | 15kg | ||||||||
| Shelf space | 40mm | 100mm | |||||||
| Power rating | AC220V/ | AC220V/ | AC220V/ | AC220V/ | AC220V/ | AC220V/ | AC380V/ | ||
| (50/60HZ) | 3.6A | 5.5A | 7.2A | 9.0A | 10.5A | 13.6A | 13.2A | ||
| NW/GW (kg） | 33/37 | 37/43 | 44/49 | 50/56 | 60/66 | 94/120 | 150/190 | ||
| Accessory | Shelf | 2 | |||||||
| Shelf frame | 4 | ||||||||
